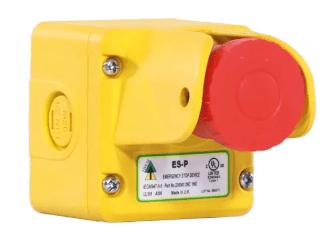

ESTOP with Yellow Plastic Enclosure and Optional Shroud

SKU ODIZ-7722

Emergency Stop Device with Optional Shroud 3-Pole Contacts

The emergency stop button is used to immediately halt hazardous processes or machinery in order to prevent or minimize injury to personnel or damage to equipment.

Body Material: High Specification Polyester in Yellow
Ingress Protection: IP67
Contacts: 3NC or 2NC + 1NO
Conduits: 2 x M20 or ½” NPT Knockout

$89.00 – $376.00In stock

Options

ESTOP Options *

230001 - ES-P Knockout M20 ½NPT 2NC 1NO (+$89.00 each)230002 - ES-P Knockout M20 ½NPT 3NC (+$89.00 each)230003 - ES-P(P) Knockout M20 ½NPT 2NC 1NO with Shroud (+$99.00 each)230004 - ES-P(P) Knockout M20 ½NPT 3NC with Shroud (+$99.00 each)

Not sure where to start? Reach out to our team to learn more.

Emergency Stop Controls

Emergency Stop Device with Optional Shroud 3-Pole Contacts

The emergency stop button is used to immediately halt hazardous processes or machinery in order to prevent or minimize injury to personnel or damage to equipment.

Body Material: High Specification Polyester in Yellow
Ingress Protection: IP67
Contacts: 3NC or 2NC + 1NO
Conduits: 2 x M20 or ½” NPT Knockout

Important Note
Where the risk assessment identifies that inadvertent operation of the E-Stop button may occur during use or breakage and loss of the button function is foreseen, it may be preferable to specify the protection shroud version. When required by local regulations, please affix the supplied yellow emergency stop sticker.

Technical Data
Approvals	cULus
Technology	Emergency Stop, Twist-To-Release
Housing Material	Yellow Polyester
Shroud Material	Yellow Polyester
Button Material	UV Resistant Polyester
Safety Contact type	IEC 60947-5-1 Double break Type Zb
Termination	Clamp up to 2.5 sq. mm conductors
Rating	Utilization Category : AC15
Operational Rating	AC15 A300 240V. 3A /120V 6A. ac
Thermal Current (Ith)	10A.
Rated Insulation Voltage (Ui)	500V
Withstand Voltage (Uimp)	2500V.
Short Circuit Overload Protection	Fuse Externally 10A. (FF)
Operating Temperature	-25 ... +80 °C
Enclosure Protection	IP67

Safety Classification and Reliability Data
Mechanical Reliability B10d	1.5 x 10 6 operations at 100mA load
ISO 13849-1	up to PLe depending upon system architecture
EN 62061	up to SIL3 depending upon system architecture
Safety Data - Annual Usage	8 cycles per hour / 24 hours per day / 365 days MTTFd 214 years

INFORMATION WITH REGARD TO UL508
Type 1 Enclosure Contact Blocks A300 230V/3A 120V/6A Wire range: 16AWG – 12AWG Stranded Copper Conductors Terminal Torque 7lb/in (0.8Nm) 24V LED (if fitted) powered by LVLC or Class 2 only.
